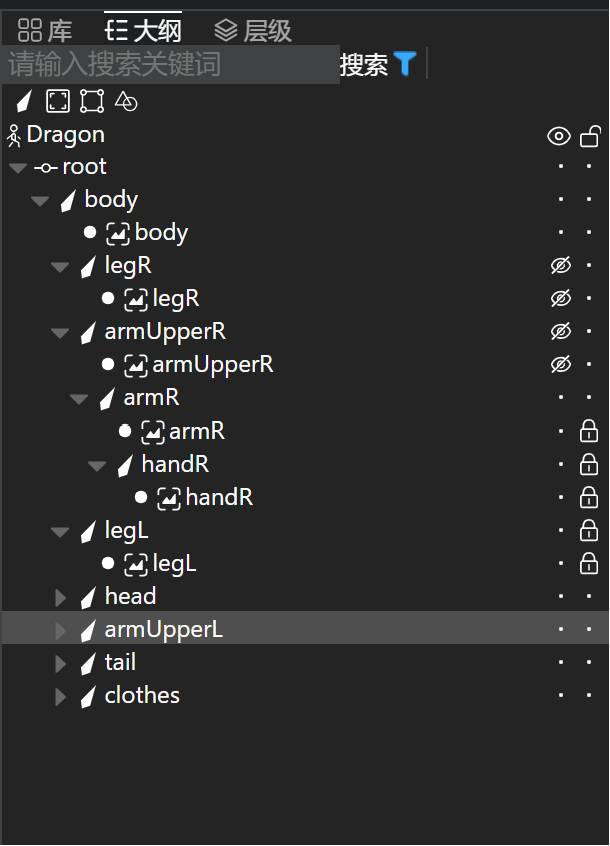

Outline Panel

The outline panel is used to display and edit the parent-child relationships of bones and slots.

The first row from left to right includes the armature name, display button, and lock button

• Click the display button to show or hide all armatures and slots

• Click the lock button to lock all armatures and slots on the stage, preventing them from being selected.

• Starting from the second row, the parent-child relationships of bones are displayed. Click the small triangle at the front to expand or collapse the contents of that parent.

• Click the small dot at the end to show or hide that bone or slot

• Click the last small dot to lock or unlock that bone or slot

• For slot resources, the dot at the front indicates which attachment is currently displayed by the slot. A hollow dot indicates a hidden state, while a solid dot indicates a visible state.

• For slot resources, clicking the dot at the front can show or hide the slot resource.

Modifying Parent-Child Relationships

You can use drag and drop operations to change parent-child relationships.
